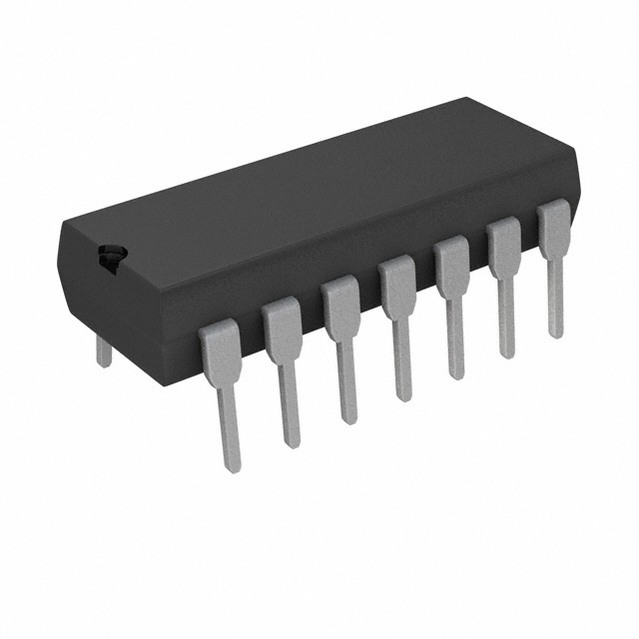

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The LT ®1014 is the first precision quad operational amplifier which directly upgrades designs in the industry standard 14-pin DIP LM324/LM348/OP-11/4156 pin configuration. It is no longer necessary to compromise specifications, while saving board space and cost, as compared to single operational amplifiers.
- FEATURES
- ■ Single Supply Operation
- Input Voltage Range Extends to Ground
- Output Swings to Ground While Sinking Current
- ■ Pin Compatible to 1458 and 324 with Precision Specs
- ■ Guaranteed Offset Voltage: 150µV Max
- ■ Guaranteed Low Drift: 2µV/°C Max
- ■ Guaranteed Offset Current: 0.8nA Max
- ■ Guaranteed High Gain
- 5mA Load Current: 1.5 Million Min
- 17mA Load Current: 0.8 Million Min
- ■ Guaranteed Low Supply Current: 500µA Max
- ■ Low Voltage Noise, 0.1Hz to 10Hz: 0.55µVP-P
- ■ Low Current Noise—Better than 0P-07, 0.07pA/√Hz
- APPLICATIONS
- ■ Battery-Powered Precision Instrumentation
- Strain Gauge Signal Conditioners
- Thermocouple Amplifiers
- Instrumentation Amplifiers
- ■ 4mA to 20mA Current Loop Transmitters
- ■ Multiple Limit Threshold Detection
- ■ Active Filters
- ■ Multiple Gain Blocks
LT1014IN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | PDIP-14 |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Slew Rate | 400 mV/μs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Minimum CMRR Range | 97 dB |
| Show | |
| Size-Height | 3.3 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
