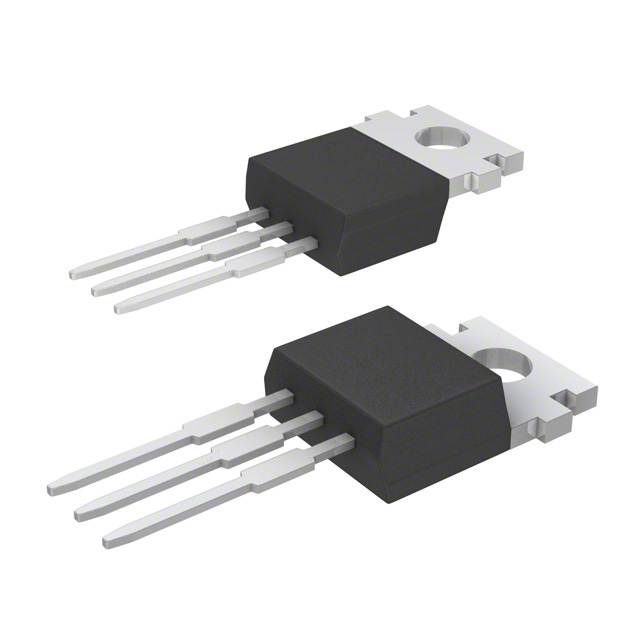

Image is for your reference only,please check specifications for details
- LT1086CT - Linear Technology
-
Manufacturer:Linear Technology
-
ManyChip's Part#:MC182997855
-
Category:Voltage Regulator
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:LT1086 - 1.5A Low Dropout Positive Regulators Adjustable and Fixed 2.85V, 3.3V, 3.6V, 5V, 12V
-
Stock Locations:
-
Availability:161 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 17.19
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Say goodbye to unstable voltages with this LDO LT1086CT linear regulator from Linear Technology. Its typical dropout voltage at current is 1.3@1.5A V. This device has a maximum power dissipation of 15000 mW. This voltage regulation device"s single output can produce a current up to 1.5 A. Using the part will provide the power your application needs by requiring a voltage not exceeding 25 V. With an adjustable output, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.3% and line regulation of 0.2%. Its maximum power dissipation is 15000 mW. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 150 °C. The maximum dropout voltage is 1.5@1.5A V.
LT1086CT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 25.0V (max) |
| Output Voltage | 1.25V ~ 23.5V |
| Output Current | 1.5 A |
| Power Dissipation | 15000 mW |
| Quiescent Current | 5 mA |
| voltage rating | 1.3V @1.5A |
| Input Voltage (Max) | 25 V |
| Input Voltage (Min) | 2.55 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 15000 mW |
| Input Voltage | 2.55V ~ 25V |
| Show | |
| Size-Height | 9.4 mm |
| Operating Temperature | 0℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
