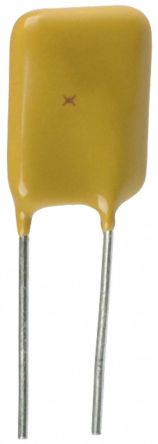

Image is for your reference only,please check specifications for details
- LVR025S - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC5534288
-
Category:Fuse
-
Package:Radial
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 0.25A(hold) 0.56A(trip) 240VDC/240VAC 1.5W 18.5s 1.3Ω Radial 9.6 X 3.8 X 17.4mm Bag
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Polymeric PTC Resettable Fuse 240V (265V Int) 250mA Ih Through Hole Radial, Disc
LVR025S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Radial |
| Voltage Rating (AC) | 240 V |
| Operating Voltage | 240 VDC |
| Time to Trip | 18.5 s |
| Power Dissipation | 1.5 W |
| Resistance | 3.8 Ω |
| Holding Current | 250 mA |
| Trip Current | 560 mA |
| Current Rating (Max) | 3.5 A |
| Holding Current (Max) | 250 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 240 V |
| Voltage Rating | 240 VAC |
| Show | |
| Size-Width | 3.8 mm |
| Size-Height | 17.4 mm |
| Cord Length | 7.6 m |
| Operating Temperature | -20℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
