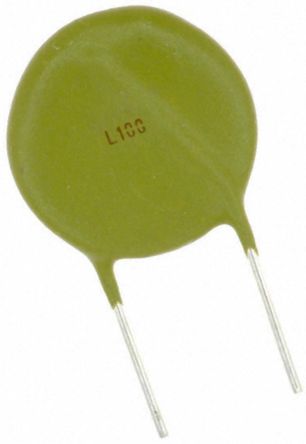

Image is for your reference only,please check specifications for details
- LVR100S - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC4104817
-
Category:Fuse
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 1A(hold) 2A(trip) 240VDC/240VAC 2.9W 21s 0.218Ω Radial 18.7 X 5.1mm Bag
-
Stock Locations:
-
Availability:311 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.11
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LVR100S is a 1A PolySwitch Resettable Device that offers low resistance and is compatibly sized with fuse solutions. It helps to protect electric motors and transformers from damage caused by mechanical overloads, overheating, stall, lost neutral and other potentially harmful conditions. This LVR series line-voltage product line of polymeric positive temperature coefficient (PPTC) device includes components that are rated for line voltage of 120 and 240VAC, for up to 2A of operating current at 20°C. Helps to protect against damage caused by both over-current surges and over-temperature faults. Unlike traditional fuses, PolySwitch device do not require replacement after a fault event. After power has been removed and the over-current condition eliminated, the circuit is restored to normal operating condition. Compared to bimetal breaker, This LVR device offers greater flexibility, longer lifespan and lower electromagnetic interference (EMI).
LVR100S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Voltage Rating (AC) | 240 V |
| Time to Trip | 21 s |
| Power Dissipation | 2.9 W |
| Resistance | 580 mΩ |
| Holding Current | 1 A |
| Trip Current | 2 A |
| Current Rating (Max) | 10 A |
| Holding Current (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 240 VAC |
| Voltage Rating | 240 VAC |
| Show | |
| Size-Height | 24.4 mm |
| Cord Length | 5.1 m |
| Operating Temperature | -20℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
