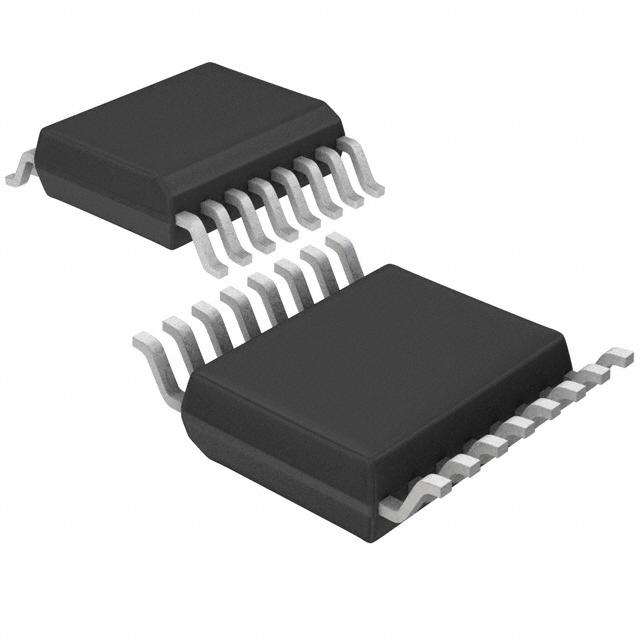

Image is for your reference only,please check specifications for details

MAX3221EEAE - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC160830563
Category:
Interface IC, Interface Controller
Package:
SSOP-16
Datasheet:
Datasheet 3D Model
Description:
15kV ESD-Protected / 1A / 3V to 5.5V / 250kbps / RS-232 Transceivers with AutoShutdown
Stock Locations:
Availability:
54 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The MAX3221E/MAX3223E/MAX3243E are 3V-powered EIA/TIA-232 and V.28/V.24 communications interfaces with automatic shutdown/wakeup features, high data rate capabilities, and enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air Gap Discharge, to ±8kV using IEC 1000-4-2 Contact Discharge, and to ±15kV using the Human Body Model.
Features
♦For Space-Constrained Applications:
MAX3228E/MAX3229E: ±15kV ESD-Protected, +2.5V to +5.5V RS-232 Transceivers in UCSP™ MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: ±15kV ESD-Protected Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers (MAX3246E Available in a UCSP Package)
♦For Data Cable Applications:
MAX3380E/MAX3381E: +2.35V to +5.5V, 1µA, 2Tx/2Rx RS-232 Transceivers with ±15kV ESD Protected I/O and Logic Pins

Show
