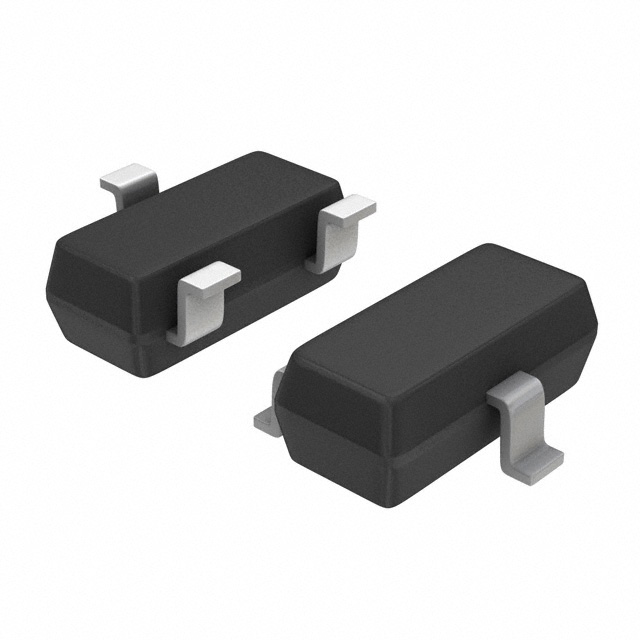

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX809/NCV809 and MAX810 are cost-effective system supervisor circuits designed to monitor V in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 10 µsec of V falling through the reset voltage threshold. Reset is maintained active for a timeout period which is trimmed by factory after V rises above the reset threshold. The MAX810 has an active-high RESET output while the MAX809 has an active-low RESETbar output. Both devices are available in a SOT-23 and SC-70 packages. The MAX809/810 are optimized to reject fast transient glitches on The Vline. Low supply current of 0.5 µA (V = 3.3 V) makes these devices suitable for battery powered applications.
Features | | Benefits
---|---|---
| | | | |
NCV Version for Automotive
| |
AEC-Q100 Qualified
Precision VCC Monitor for 1.5 V, 1.8V, 2.5 V, 3.0 V, 3.3 V and 5.0 V supplies
| |
Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps
| |
Four Guaranteed Minimum RESET Output Duration
(1ms, 20ms, 100ms and 140ms)
| |
RESET Output Guaranteed to VCC = 1.0 V
| |
Low 1.0 µA Supply Current
| |
VCC Transient Immunity
| |
Small SOT-23 and SC-70 Package
| |
No External Components
| |
Wide Operating Temperature: -40°C to 105°C
| |

Show

MAX809STR Specifications
