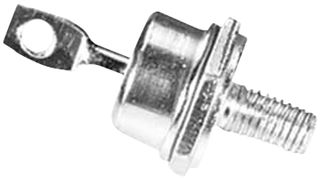

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MBR6045 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	2 Pin
Case/Package	DO-5
Forward Voltage	650mV @60A
Forward Current	60 A
Maximum Forward Voltage (Max)	650 mV
Forward Current (Max)	60 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Size-Height	23.18 mm
Operating Temperature	100 ℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17
