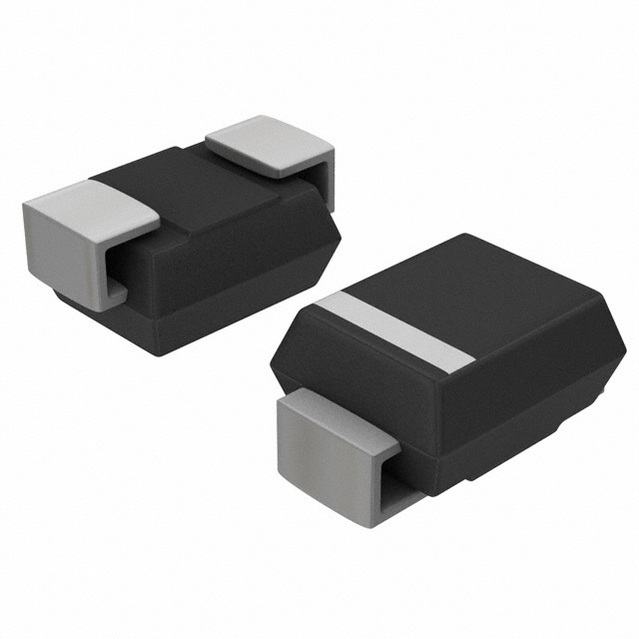

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Surface Mount Schottky Power Rectifier • Small Compact Surface Mountable Package • Rectangular Package for Automated Handling • Highly Stable Oxide Passivated Junction • High Blocking Voltage — 100 Volts • 150°C Operating Junction Temperature • Guarding for Stress Protection

Show

MBRS260T3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	DO-214AA
Voltage Rating (DC)	60.0 V
Current Rating	2.00 A
Output Current	≤2.00 A
Forward Voltage	630mV @2A
Polarity	Standard
Thermal Resistance	24℃/W (RθJL)
Max Repetitive Reverse Voltage (Vrrm)	60V
Forward Current	2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	4.32 mm
Size-Width	3.56 mm
Size-Height	2.13 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
