MC14053BDR2G ON Semiconductor - Analog Switches

Image is for your reference only,please check specifications for details

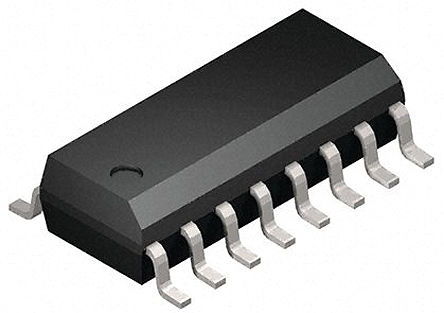

MC14053BDR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC9807658
Category:
Analog Switches
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
На полупроводниковом компоненте MC14053BDR2G используется аналоговый мультиплексор/демультиплексор IC с соотношением каналов 2:1, 3 цепи, импеданс 80Ω, напряжение питания от 3V до 18V, форма корпуса SOIC-6.
Stock Locations:
Availability:
433 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 24/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

MC14053BDR2G представляет собой аналоговый мультиплексор/аналоговый переключатель с цифровым управлением. Устройство фактически выполняет функции тройного SPDT-переключателя. Особенности устройства: низкий импеданс в рабочем состоянии и очень низкий отключающийся зазорный ток. Можно управлять аналоговыми сигналами в диапазоне полного напряжения питания.
Тройная защита діодов на входах управления.
Функция переключателя: отключение перед включением.
Переоборудование по pin-пин для устройства CD4053.
Линейные характеристики передачи сигналов.
12 нВ/√цикл, частота более 1,0 кГц (типичные значения). Низкий уровень шума.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	18.0 V
Operating Voltage	3V ~ 18V
Capacitance	7.5 pF
Halogen Free Status	Halogen Free
Number of Outputs	3 Output
Contacts Type	SPDT
Supply Current	600 μA
Number of Circuits	3 Circuit
Number of Channels	3 Channel
Number of Positions	16 Position
Power Dissipation	500 mW
Quiescent Current	20 µA
Bandwidth	17 MHz
Number of Inputs	6 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	17 MHz
Power Dissipation (Max)	500 mW
Supply Voltage	3V ~ 18V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
