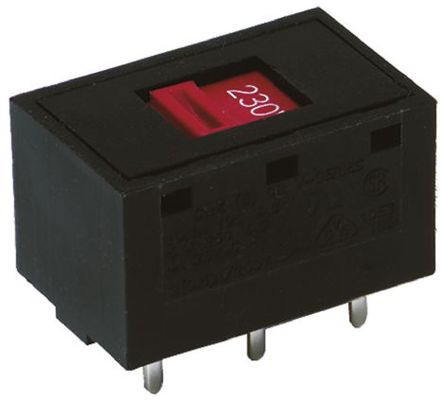

Image is for your reference only,please check specifications for details

V80212MS02Q - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC2683400
Category:
Slide Switch, Switch Slide
Package:
Through Hole
Datasheet:
Datasheet 3D Model
Description:
C & K COMPONENTS V80212MS02Q Slide Switch, V Series, DPDT, Vertical, Through Hole, 10.1A, 125V
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Power and line voltage select switch mounts on panel and helps deter accidental operation with a flush actuator.

Show

V80212MS02Q Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Through Hole
Voltage Rating (DC)	28.0 V
Current Rating	5 A
Insulation Resistance	1000 MΩ
Number of Rows	2 Row
Orientation	Vertical
Contacts Type	DPDT
Number of Positions	2 Position
Contact Resistance	10 mΩ
Contact Current Rating	5A @250VAC
Current Rating (Max)	10A @125VAC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	30 V
Voltage Rating (DC Max)	30 V
Voltage Rating (AC Max)	250 V
Maximum Contact Resistance (Max)	<10 mΩ
	Show
Size-Length	26.19 mm
Size-Height	15.75 mm
Contact Material	Silver
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	10000 Cycle(s)
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509050
ECCN Code	EAR99
