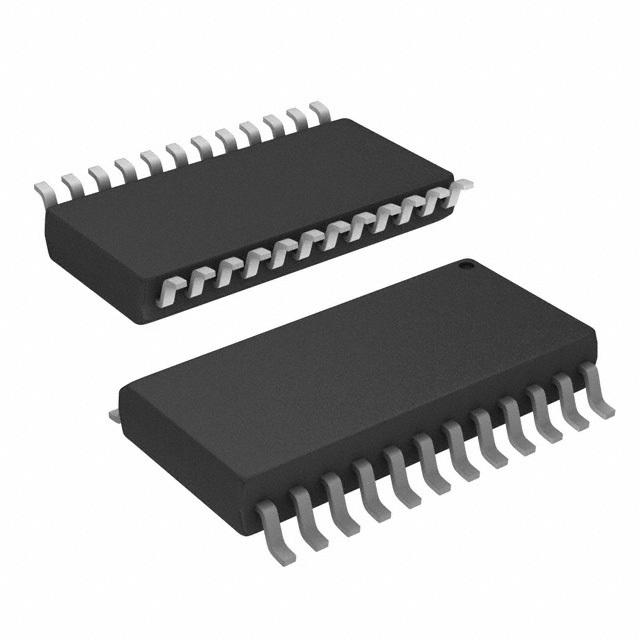

MC14067BDWR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC20798630
Category:
Multiplexer IC
Package:
SOIC-24
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC14067BDWR2G Analog Multiplexer / Demultiplexer, 16:1, 1 Circuit, 250Ω, 3V to 18V, SOIC-24
Stock Locations:
Availability:
923 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.91

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Analog Multiplexers / Demultiplexers
The MC14067 multiplexer/demultiplexer is a digitally controlled analog switch featuring low ON resistance and very low leakage current. This device can be used in either digital or analog applications.
Features
•Low OFF Leakage Current
•Matched Channel Resistance
•Low Quiescent Power Consumption
•Low Crosstalk Between Channels
•Wide Operating Voltage Range: 3 to 18 V
•Low Noise
•Pin for Pin Replacement for CD4067B
•Pb−Free Packages are Available

Show

MC14067BDWR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SOIC-24
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Supply Current	360 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	24 Position
Power Dissipation	500 mW
Bandwidth	15 MHz
Number of Inputs	16 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	15 MHz
Power Dissipation (Max)	500 mW
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	Show
Size-Length	15.54 mm
Size-Width	7.6 mm
Size-Height	2.36 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
