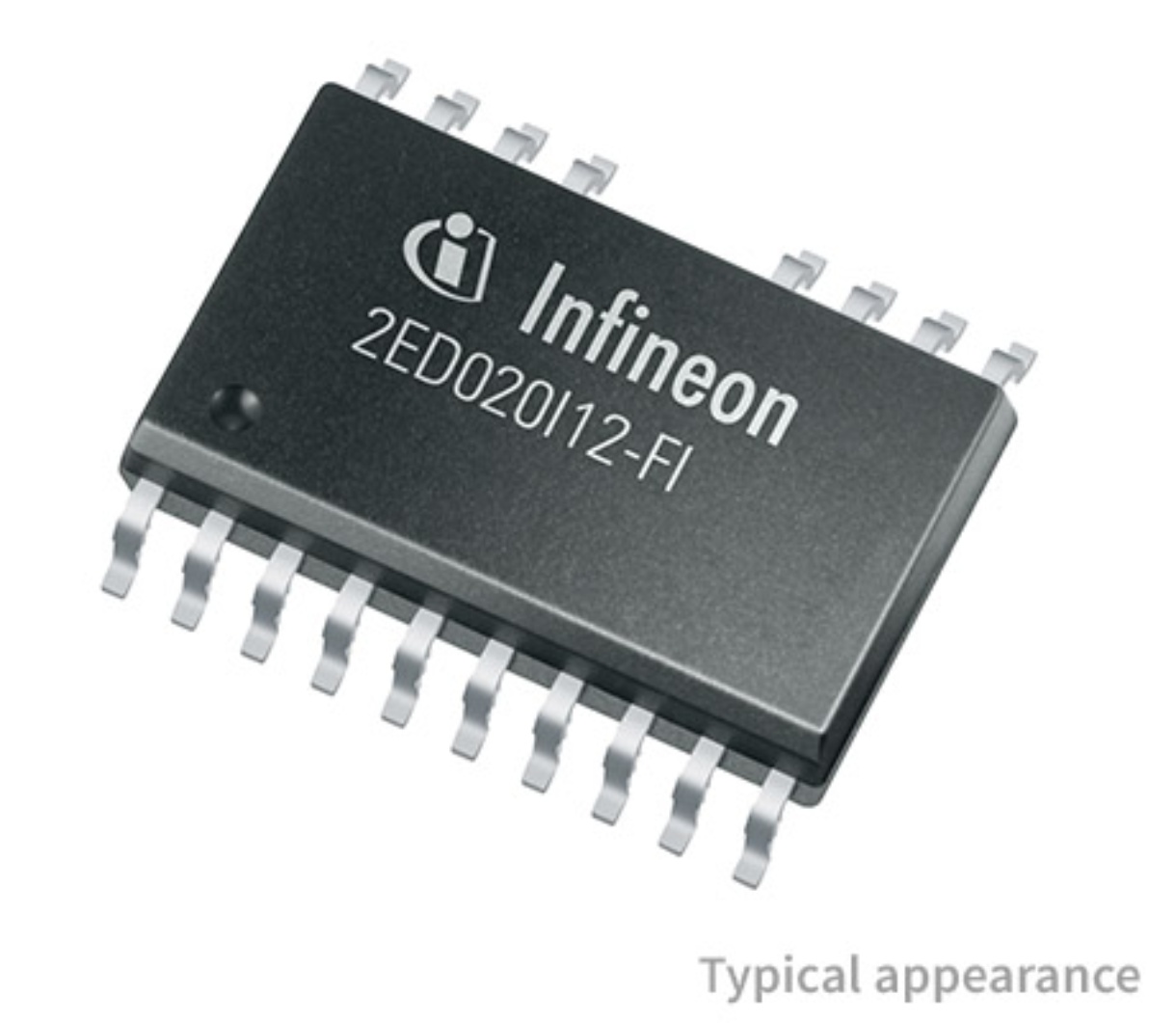

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- 1200V Coreless Transformer isolated Driver Ics
- Rail-to-rail outputs
- Protection function
- Floating high side driver
- Undervoltage lockout for both channels
- 3.3V and 5V TTL compatible inputs
- Benefits:
- Space saving package
- Improved energy efficiency
2ED020I12FIXUMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 18 Pin |
| Case/Package | PG-DSO-18-2 |
| Rise/Fall Time | 20 ns |
| Number of Outputs | 2 Output |
| Number of Positions | 18 Position |
| Power Dissipation | 1.4 W |
| Rise Time | 40 ns |
| Fall Time | 35 ns |
| Fall Time (Max) | 40 ns |
| Fall Time (Max) | 50 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1400 mW |
| Supply Voltage | 14V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 14 V |
| Show | |
| Size-Length | 12.8 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.45 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
