CSNE151 - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC13144300
Category:
Proximity Sensor
Package:
Module, Single Pass Through
Datasheet:
Datasheet 3D Model
Description:

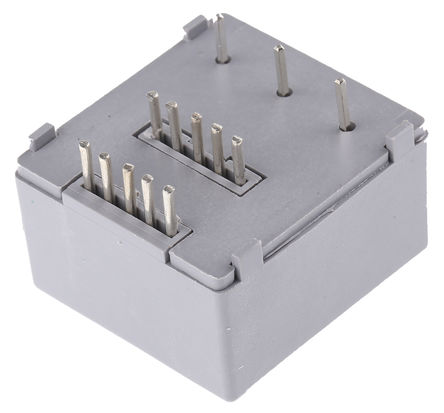

HONEYWELL CSNE151 Current Sensor, CSN Series, Solid State, -36A to 36A, Closed Loop Output, 14.25VDC to 15.75VDC
Stock Locations:
Availability:
228 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.9

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CSNE151 is a closed loop Current Sensor for current feedback control systems. Based on the principles of the magneto-resistive or hall effects and the null balance or zero magnetic flux method (feedback system). The magnetic flux in the sensor core is constantly controlled at zero. The amount of current required to balance zero flux is the measure of the primary current flowing through the conductor, multiplied by the ratio of the primary to secondary windings. This closed loop current is the output from the device and presents an image of the primary current reduced by the number of secondary turns at any time. This current can be expressed as a voltage by passing it through a resistor.
Rapid response
High overload capability
High level of electrical isolation between primary and secondary circuits
Industrial operating temperature range
Small size and weight
0 to 70°C Operating temperature range

Show

CSNE151 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	13 Pin
Case/Package	Module, Single Pass Through
Supply Voltage (DC)	15.0 V
Current Rating	36 A
Output Current	25 mA
Supply Current	10 mA
Number of Channels	1 Channel
Flammability Rating	UL 94 V-0
Coil Resistance	110 Ω
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±0.5 %
Supply Voltage	15 V
	Show
Size-Length	28.0 mm
Size-Width	28 mm
Size-Height	28 mm
Material	Polybutylene Terephthalate
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HTS Code	9030330040
ECCN Code	9A610.x
