Description

The seven NPN Darlington connected transistors in these arrays are well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Their high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500 mA permit them to drive incandescent lamps. The MC1413, B with a 2.7 kΩ series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic.

Show

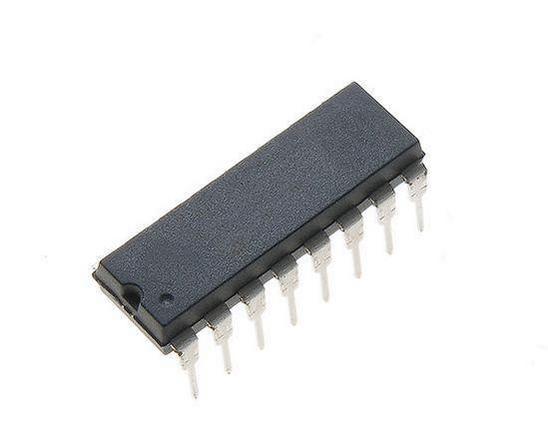

MC1413P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	30.0 V
Current Rating	500 mA
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	0.5A
hFE Min	1000
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
	Show
Size-Length	19.55 mm
Size-Width	6.85 mm
Size-Height	3.43 mm
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
