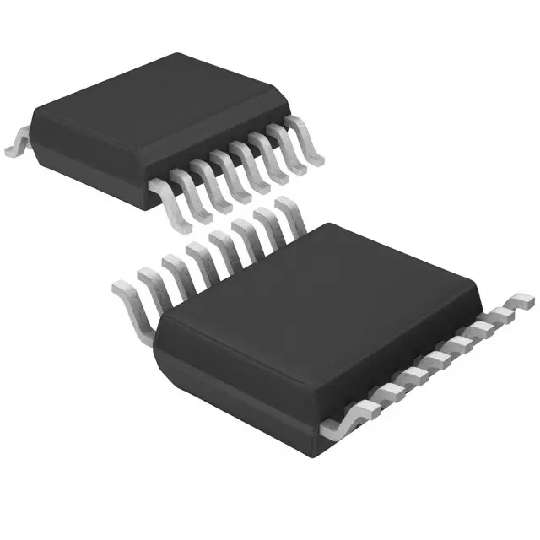

Image is for your reference only,please check specifications for details

MC14504BDT - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC128502662
Category:
Logic Controller, Logic IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
Voltage Level Shifter CMOS/TTL to CMOS 6 Unidirectional Automotive 16Pin TSSOP Rail
Stock Locations:
Availability:
329 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 29/04/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC14504B is a hex non−inverting level shifter using CMOS technology. The level shifter will shift a TTL signal to CMOS logic levels for any CMOS supply voltage between 5 and 15 volts. A control input also allows interface from CMOS to CMOS at one logic level to another logic level: Either up or down level translating is accomplished by selection of power supply levels VDD and VCC. The VCC level sets the input signal levels while VDD selects the output voltage levels.
Features
• UP Translates from a Low to a High Voltage or DOWN Translates from a High to a Low Voltage
• Input Threshold Can Be Shifted for TTL Compatibility
• No Sequencing Required on Power Supplies or Inputs for Power Up or Power Down
• 3 to 18 Vdc Operation for VDD and VCC
• Diode Protected Inputs to VSS
• Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range
• Pb−Free Packages are Available

Show

MC14504BDT Specifications
