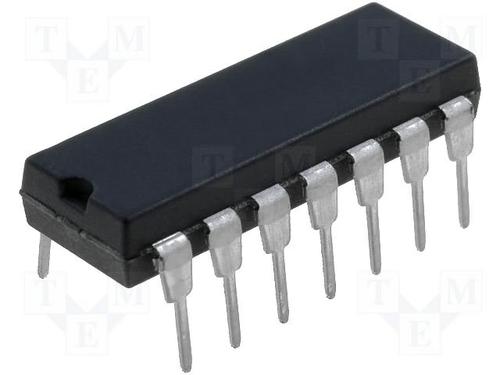

Image is for your reference only,please check specifications for details

MC33174N - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC86480326
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS MC33174N Operational Amplifier, Quad, 4 Amplifier, 2.1MHz, 2V/µs, ± 2V to ± 22V, DIP, 14Pins
Stock Locations:
Availability:
3,046 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.63

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MC33174N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Voltage (DC)	15.0 V
Operating Voltage	2V ~ 22V
Supply Current	220 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	80 dB
Bandwidth	2.1 MHz
Slew Rate	2.00 V/μs
Gain Bandwidth Product	2.1 MHz
Input Offset Voltage	1 mV
Input Bias Current	20 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2.1 MHz
Minimum CMRR Range	80 dB
Supply Voltage (Max)	44 V
Supply Voltage (Min)	4 V
	Show
Size-Length	20 mm
Size-Width	7.1 mm
Size-Height	5.1 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
