Description

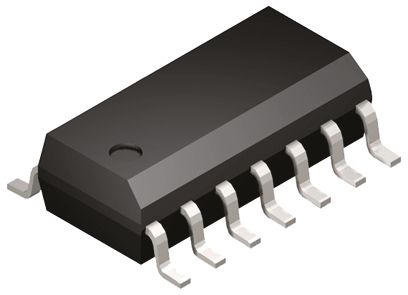

The MC74ACT125DG is a quad buffer with 3-state outputs in 14 pin SOIC package. It is a high performance silicon gate CMOS quad buffer.
Outputs source/sink
Supply voltage range from 4.5V to 5.5V
Operating ambient temperature range from -40°C to 85°C
Output current of ±24mA
9ns (tPHL) and 9ns (tPHL) maximum propagation delay data to output at VCC=5V, TA = +25°C, CL = 50pF
Maximum output enable time of 8.5ns (tPZH) and 9.5ns (tPZL) at VCC=5V, TA = +25°C, CL = 50pF
Maximum output disable time of 9.5ns (tPHZ) and 10ns (tPLZ) at VCC=5V, TA = +25°C, CL = 50pF
TTL compatible inputs

Show

MC74ACT125DG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	4.50V (min)
Halogen Free Status	Halogen Free
Number of Outputs	4 Output
Number of Channels	4 Channel
Number of Positions	14 Position
Number of Bits	4 Bit
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
