Description
- Phase−Locked Loop
- High−Performance Silicon−Gate CMOS
- The MC74HC4046A is similar in function to the MC14046 Metal gate CMOS device. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
- Features
- • Output Drive Capability: 10 LSTTL Loads
- • Low Power Consumption Characteristic of CMOS Devices
- • Operating Speeds Similar to LSTTL
- • Wide Operating Voltage Range: 3.0 to 6.0 V
- • Low Input Current: 1.0 μA Maximum (except SIGIN and COMPIN)
- • In Compliance with the Requirements Defined by JEDEC Standard No. 7A
- • Low Quiescent Current: 80 μA Maximum (VCO disabled)
- • High Noise Immunity Characteristic of CMOS Devices
- • Diode Protection on all Inputs
- • Chip Complexity: 279 FETs or 70 Equivalent Gates
- • Pb−Free Packages are Available

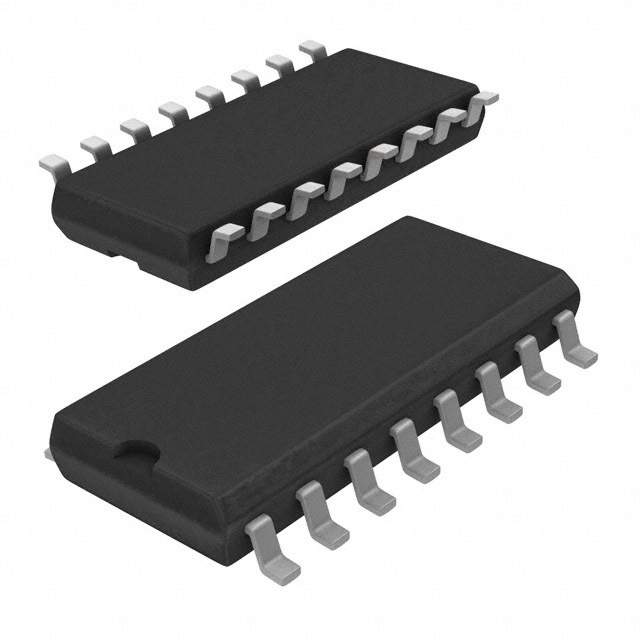

MC74HC4046AFG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Number of Outputs | 4 Output |
| Number of Circuits | 1 Circuit |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 5.45 mm |
| Size-Height | 1.85 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
