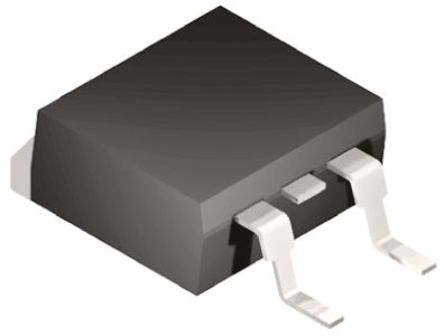

MC7905CD2TG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3713544
Category:
Voltage Regulator
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator, Negative, 5V, 1A Vout: -5V; 4%; TJ = 0°C to +125℃
Stock Locations:
Availability:
212 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.7

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC7905CD2TG is a 1A negative voltage regulator in 3 pin D2PAK package. This MC7900 series of fixed output negative voltage regulator is intended as complements to the popular MC7800 series devices. This negative regulator is available with one fixed voltage. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7900 series. The regulator employs current limiting, thermal shutdown and safe area compensation making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 1A.
Input voltage is -35VDC
Output voltage range from -4.8VDCto -5.2VDC
Dropout voltage is 1.3VDC
No external components required
Internal thermal overload protection
Internal short circuit current limiting
Output transistor safe area compensation
Output voltage tolerance is 4%
Operating temperature range from 0°C to +125°C

Show

MC7905CD2TG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	-5.20 V (max)
Output Current	1 A
Number of Positions	3 Position
Polarity	N-Channel
Quiescent Current	4.3 mA
voltage rating	1.3 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±4 %
	Show
Size-Length	10.24 mm
Size-Width	9.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
