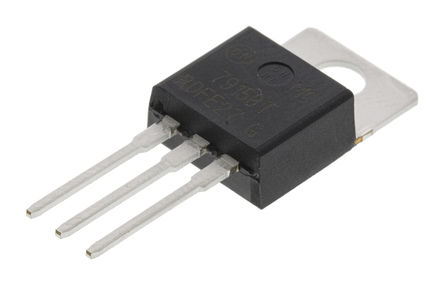

Image is for your reference only,please check specifications for details

MC7915BTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2212711
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator, Negative, 15V, 1A Vout: -15V; 4%; TJ = -40℃ to +125℃
Stock Locations:
Availability:
701 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC7915BTG is a -15V fixed output negative Linear Regulator. The device features current limiting, thermal shutdown and safe-area compensation making them remarkably rugged under most operating conditions. With adequate heatsinking the device can deliver output currents in excess of 1A.
No external components required
Internal thermal overload protection
Internal short circuit current limiting
Output transistor safe-area compensation
4% Output voltage tolerance

Show

MC7915BTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	15 W
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	-35.0 V (max)
Output Voltage	15 V
Output Current	1 A
Number of Positions	3 Position
Polarity	N-Channel
Quiescent Current	8 mA
voltage rating	1.3 V
Input Voltage (Max)	35 V
Input Voltage (Min)	17 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
	Show
Size-Length	10.28 mm
Size-Width	4.82 mm
Size-Height	15.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
