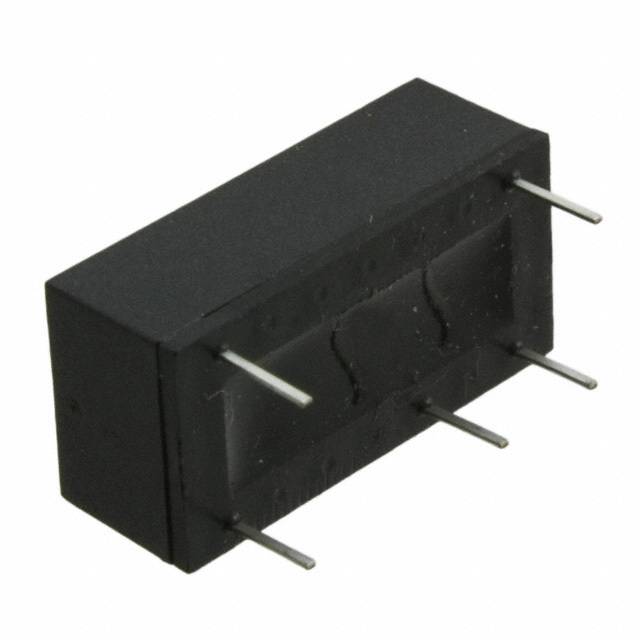

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* UL 60950 Recognized * RoHS compliant * Efficiency to 89% (Typ.) * Power density to 0.85W/cm3 * Wide temperature performance at full 1 Watt load, –40°C to 85°C * UL 94V-0 package material * No heatsink required * Industry standard pinout * 3kVDC isolation (1 minute) ‘Hi Pot Test’ * 5V, 12V, 15V, 24V, & 48V inputs * 5V, 9V, 12V, & 15V output * Fully encapsulated with toroidal magnetics * No external components required * No electrolytic or tantalum capacitors

Show

MEV1S0512DC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	DIP-14
Supply Voltage (DC)	5.00 V
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 5.50V
Output Voltage	12 V
Output Current	0.084 A
Output Power	1 W
Isolation Voltage	3 kV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	4.5 v
Output Current (Max)	84 mA
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 5.5V
	Show
Size-Width	10 mm
Size-Height	7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
