Power MOSFET 30 V, 2.1 A, Single N−Channel, SOT−23 These miniature surface mount MOSFETs low RDS(on) assure minimal power loss and conserve energy, making these devices ideal for use in space sensitive power management circuitry. Typical applications are dc−dc converters and power management in portable and battery−powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. • Low RDS(on) Provides Higher Efficiency and Extends Battery Life • Miniature SOT−23 Surface Mount Package Saves Board Space • Pb−Free Package is Available

Show

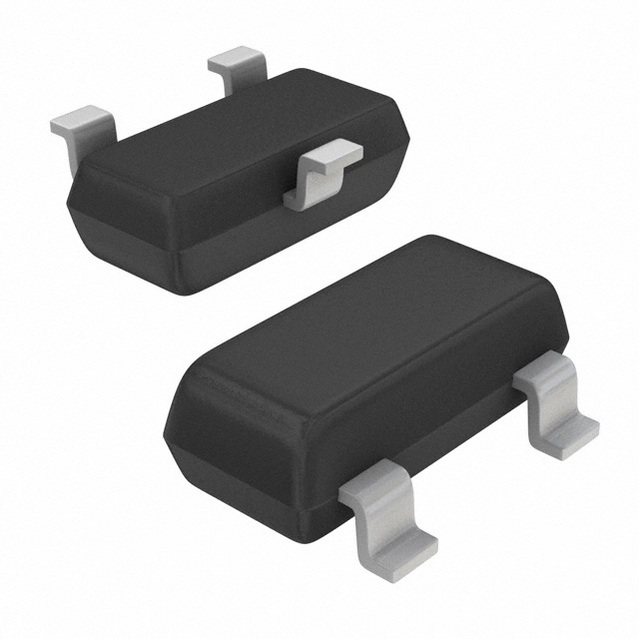

MGSF1N03LT1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	30.0 V
Current Rating	750 mA
Drain to Source Resistance (on) (Rds)	125 mΩ
Polarity	N-Channel
Power Dissipation	730 mW
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	750 mA
Rise Time	1 ns
Input Capacitance (Ciss)	140pF @5V(Vds)
Fall Time	1 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	420mW (Ta)
	Show
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
