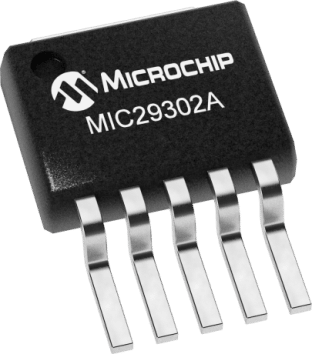

Image is for your reference only,please check specifications for details

MIC29302AWU - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC16884326
Category:
Voltage Regulator
Package:
TO-263-5
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MIC29302AWU LDO Voltage Regulator, Adjustable, 3V to 16V input, 450mV drop., 1.24V to 15V/3A out, TO-263-5
Stock Locations:
Availability:
1,233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.22

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC29302AWU is a 3A fast-response LDO Regulator with a Micrel"s proprietary Super βeta PNP® process with a PNP pass element. The 3A LDO regulator features 450mV (full load) dropout voltage and very low ground current. Designed for high-current loads, this devices also find applications in lower current, low dropout-critical systems, where their dropout voltage and ground current values are important attributes. Along with a total accuracy of ±2% (over-temperature, line and load regulation) the regulator features very-fast transient recovery from input voltage surges and output load current changes.
High current capability
Low dropout voltage
Low ground current
Accurate 1% guaranteed tolerance
Extremely fast transient response
Zero-current shutdown mode
Error flag signals output out-of-regulation

Show

MIC29302AWU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-5
Number of Outputs	1 Output
Output Voltage	1.24V ~ 15V
Output Current	3 A
Number of Positions	5 Position
voltage rating	450 mV
Input Voltage (Max)	16 V
Input Voltage (Min)	3 V
Output Voltage (Max)	15 V
Output Voltage (Min)	1.24 V
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	3V ~ 16V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
