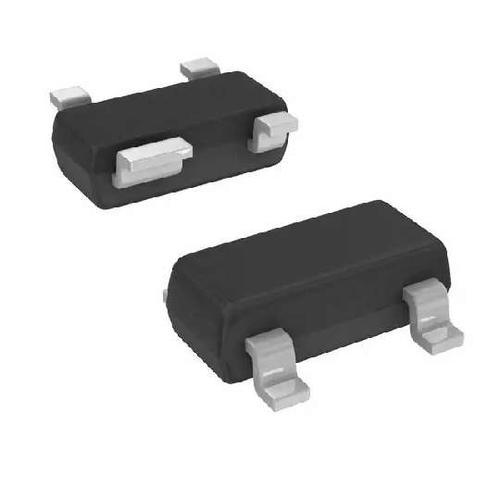

Image is for your reference only,please check specifications for details

MIC4416YM4 TR - Micrel
Manufacturer:
Micrel
ManyChip's Part#:
MC68606400
Category:
FET Driver
Package:
TO-253-4
Datasheet:
Datasheet 3D Model
Description:
MICREL SEMICONDUCTOR MIC4416YM4 TR MOSFET Driver, Low Side, 4.5V-18V Supply, 1.2A Out, 23ns Delay, SOT-143-4
Stock Locations:
Availability:
298 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC4416YM4 TR is a low-side MOSFET Driver designed to switch an N-Channel enhancement-type MOSFET from a TTL compatible control signal in low-side switch applications. The Itty-bitty® driver is non-inverting and this features short delays and high peak current to produce precise edges and rapid rise and fall times.
Operates in low-side switch circuits
ESD protection

Show

MIC4416YM4 TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-253-4
Supply Voltage (DC)	4.50V (min)
Number of Outputs	1 Output
Output Voltage	20.0 V
Output Current	1.20 A
Number of Positions	4 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	2.92 mm
Size-Width	1.3 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 85℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
