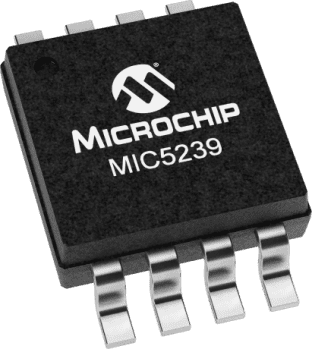

Image is for your reference only,please check specifications for details

MIC5239YMM - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC31844709
Category:
Voltage Regulator
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MIC5239YMM LDO Voltage Regulator, Adjustable, 2.3V to 30V input, 350mV drop., 1.24V to 20V/0.5A out, MSOP-8
Stock Locations:
Availability:
132 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.29

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MIC5239YMM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Number of Outputs	1 Output
Output Voltage	1.24V ~ 20V
Output Current	500 mA
Number of Positions	8 Position
Quiescent Current	23 µA
voltage rating	350 mV
Input Voltage (Max)	30 V
Input Voltage (Min)	2.3 V
Output Voltage (Max)	20 V
Output Voltage (Min)	1.24 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.3V ~ 30V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
