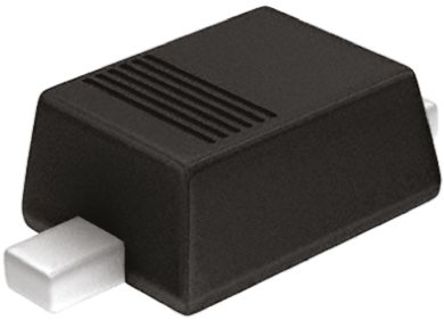

Image is for your reference only,please check specifications for details

MM3Z5V6B - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC38664446
Category:
Zener Diode, Zener
Package:
SOD-323-2
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR MM3Z5V6B Zener Single Diode, 5.6V, 200mW, SOD-323F, 2%, 2Pins, 150℃
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MM3Z5V6B is a Zener Diode suitable for general usage and many different applications.
VZ tolerance selection of ±2% (B Series)
Very small and thin SMD package
Matte tin (Sn) finish, Pb-free

Show

MM3Z5V6B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Capacitance Tolerance	±2 %
Number of Positions	2 Position
Forward Voltage	1V @10mA
Power Dissipation	200 mW
Test Current	5 mA
Zener Voltage	5.6 V
Maximum Forward Voltage (Max)	1V @10mA
Input Power (Max)	200 mW
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	1.7 mm
Size-Width	1.3 mm
Size-Height	1 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
