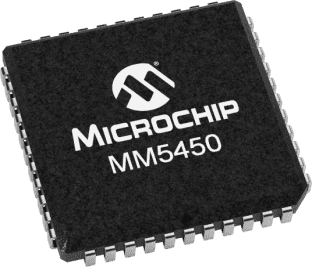

Image is for your reference only,please check specifications for details

MM5450YV - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC7878929
Category:
LED Driver, LED Display Driver
Package:
PLCC-44
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MM5450YV LED Driver, 4.75V to 11V input, 35Outputs, 500kHz Switch. Frequency, 1.8V/2.7mA out, LCC-44
Stock Locations:
Availability:
117 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MM5450YV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	PLCC-44
Number of Outputs	35 Output
Output Voltage	1.8 V
Output Current	2.7 mA
Supply Current	10 mA
Number of Positions	44 Position
Power Dissipation	1000 W
Switching Frequency	500 kHz
Input Voltage (Max)	11 V
Input Voltage (Min)	4.75 V
Output Voltage (Max)	1.8 V
Output Current (Max)	25 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 11V
	Show
Size-Length	16.65 mm
Size-Width	16.65 mm
Size-Height	3.66 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
