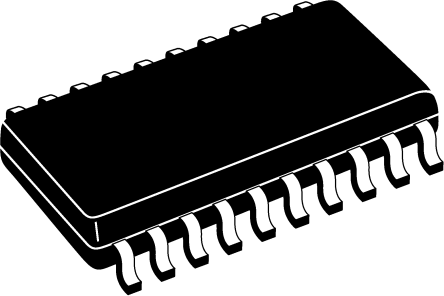

MM74HC574WM - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC12233933
Category:
Flip Flop IC
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR MM74HC574WM Flip-Flop, Tri State, Positive Edge, 74HC574, D, 18ns, 60MHz, 7.8mA, SOIC
Stock Locations:
Availability:
278 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.45

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MM74HC574WM is a 3-state octal D-type Edge-triggered Flip-Flop utilize advanced silicon-gate P-well CMOS technology. It posses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-state feature, this device is ideally suited for interfacing with bus lines in a bus organized system. This device is positive edge triggered flip-flops. Data at the D inputs, meeting the set-up and hold time requirements, are transferred to the Q outputs on positive going transitions of the clock (CK) input. When a high logic level is applied to the Output Control (OC) input, all outputs go to a high impedance state, regardless of what signals are present at the other inputs and the state of the storage elements. The 74HC logic family is speed, function and pinout compatible with the standard 74LS logic family.
1µA Maximum low input current
80µA Maximum low quiescent current

Show

MM74HC574WM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Frequency	60 MHz
Digital Logic Level	CMOS
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Number of Outputs	9 Output
Output Current	7.8 mA
Number of Circuits	8 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Clock Speed	35 MHz
Number of Bits	8 Bit
Polarity	Non-Inverting
Quiescent Current	80 µA
Number of Gates	8 Gate
Input Capacitance	5 pF
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	13 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
