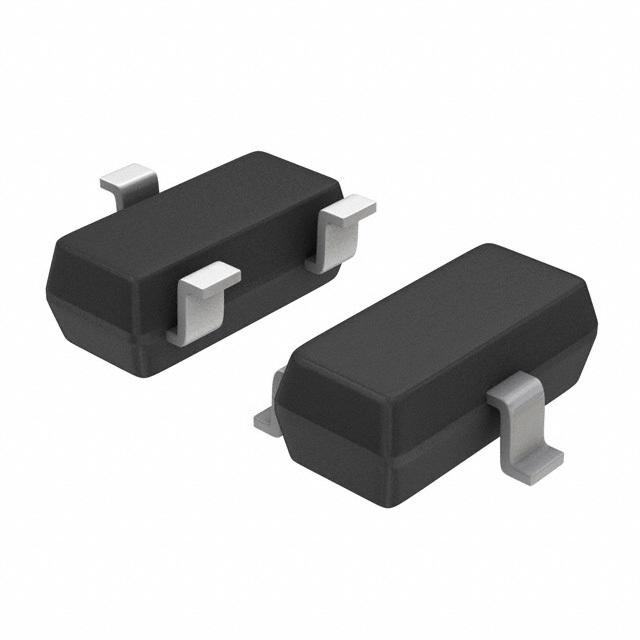

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Use a switch MMBV3401LT1G PIN diode from ON Semiconductor to incorporate a password in your application. Its maximum power dissipation is 200 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It is made in a single configuration. This PIN diode attenuator has a minimum operating temperature of -55 °C and a maximum of 125 °C.
MMBV3401LT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 14.0 V |
| Current Rating | 10.0 A |
| Capacitance | 1.00 pF |
| Halogen Free Status | Halogen Free |
| Breakdown Voltage | 35.0 V |
| Polarity | Standard |
| Power Dissipation | 0.2 W |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Width | 1.3 mm |
| Operating Temperature | 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
