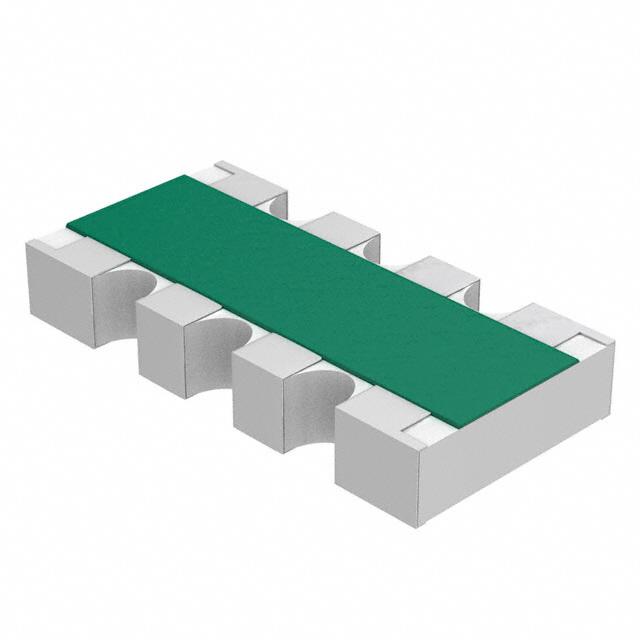

Image is for your reference only,please check specifications for details
- MNR14E0APJ473 - ROHM Semiconductor
-
Manufacturer:ROHM Semiconductor
-
ManyChip's Part#:MC37696233
-
Category:Resistor Array
-
Package:1206
-
Datasheet:Datasheet 3D Model
-
Description:Res Thick Film Array 47KΩ 5% 200ppm/℃ ISOL Molded 8Pin 1206(4 X 0603) Convex SMD Paper T/R
-
Stock Locations:
-
Availability:252 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 47k Ohm ±5% 62.5mW Power Per Element Isolated Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
MNR14E0APJ473 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package (SI) | 3216 |
| Case/Package | 1206 |
| Number of Contacts | 8 Contact |
| Voltage Rating (DC) | 50.0 V |
| Capacitance Tolerance | ±5 % |
| Power Rating | 0.063 W |
| Power Dissipation | 0.063 W |
| Resistance | 47 kΩ |
| Resistance Tolerance | ±5 % |
| Voltage Rating | 50 V |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 1.6 mm |
| Size-Height | 0.5 mm |
| Operating Temperature | -55℃ ~ 155℃ |
| Temperature Coefficient | ±200 ppm/℃ |
| Product Lifecycle Status | Discontinued at Digi-Key |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
