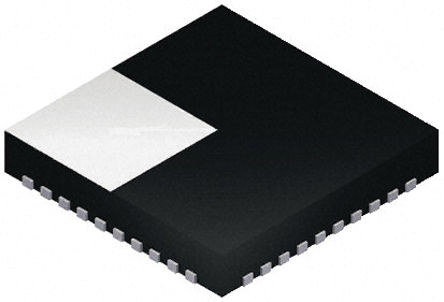

Image is for your reference only,please check specifications for details
- MSP430FR5739IRHAT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC10575175
-
Category:Microcontroller, MCU IC
-
Package:VQFN-40
-
Datasheet:Datasheet 3D Model
-
Description:MSP430FR5739 24MHz ULP microcontroller with 16KB FRAM, 1KB SRAM, 32 IO, 10Bit ADC & comparator 40-VQFN -40℃ to 85℃
-
Stock Locations:
-
Availability:204 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.9
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MSP430FR5739IRHAT is a 16-bit ultra-low-power Mixed-signal Microcontroller features an embedded FRAM non-volatile memory, powerful 16-bit RISC MSP430 CPU and different peripherals. The architecture showcases seven low-power modes, which are optimized to achieve extended battery life. FRAM is a new non-volatile memory that combines the speed, flexibility and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption. The device configurations with five 16-bit timers, 10-bit A/D converter, a 16-channel comparator with voltage reference generation and hysteresis capabilities, three enhanced serial channels capable of I2C, SPI or UART protocols, a hardware multiplier and 32 general-purpose I/O pins. This device operates at a maximum frequency of 24MHz.
- Ultra-low-power ferroelectric RAM (FRAM)
- 32-bit Hardware multiplier (MPY)
- 3-channel internal DMA
- Real-time clock (RTC) with calendar and alarm functions
- Five 16-bit timers with up to 3 Capture/Compare registers
- 16-bit Cyclic redundancy checker (CRC)
- 16-channel analog comparator with voltage reference and programmable hysteresis
- 14-channel 10-bit ADC with internal reference and sample-and-hold
- UART with automatic baud-rate detection
- IrDA Encoder and decoder
- SPI at rates up to 10Mbps
- I2C with multiple-slave addressing
- Hardware UART bootloader (BSL)
- Fully integrated LDO
- Supply voltage supervisor for core and supply voltages with reset capability
- Always-on zero-power brownout detection
- Serial on-board programming with no external voltage needed
- Fixed-frequency DCO with six selectable factory-trimmed frequencies
- Low-power low-frequency internal clock source (VLO)
- 32kHz Crystals (LFXT)
- These products use FRAM non-volatile memory technology. FRAM retention is sensitive to extreme temperatures, such as those experienced during reflow or hand soldering.
MSP430FR5739IRHAT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 40 Pin |
| Case/Package | VQFN-40 |
| Frequency | 24 MHz |
| Supply Voltage (DC) | 2.00V (min) |
| Number of Positions | 40 Position |
| Clock Speed | 24.0 MHz |
| RAM Memory Size | 1 KB |
| Number of Bits | 16 Bit |
| FLASH Memory Size | 0 B |
| Number of UARTs | 2 UART |
| Number of ADCs | 1 ADC |
| FRAM Memory Size | 16384 B |
| Number of Inputs and Outputs | 33 IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 6.15 mm |
| Size-Width | 6.15 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2017/07/07 |
