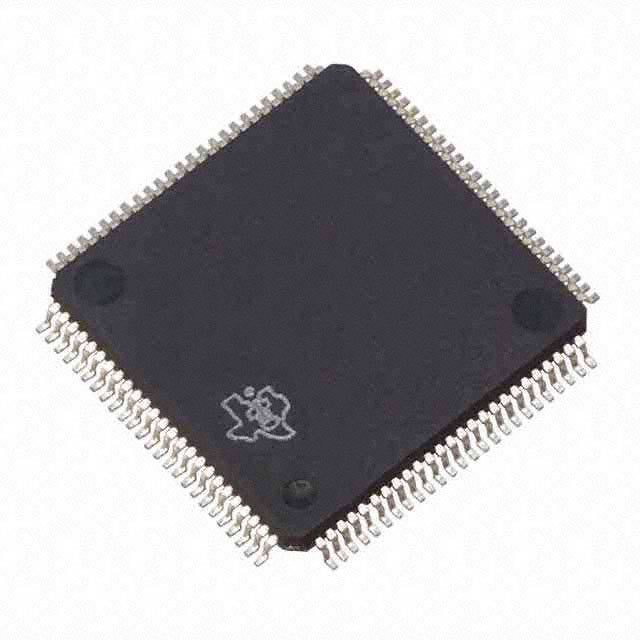

Image is for your reference only,please check specifications for details
- MSP430FR6989IPZ - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC13133745
-
Category:16-Bit Microcontroller IC
-
Package:LQFP-100
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit MSP430 RISC 128KB Flash 2.5V/3.3V 100Pin LQFP Tray
-
Stock Locations:
-
Availability:275 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.4
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MSP430FR6989IPZ is a 16-bit ultra-low-power Mixed-signal Microcontroller features an embedded FRAM non-volatile memory, powerful 16-bit RISC MSP430 CPU and different peripherals. The architecture showcases seven low-power modes, which are optimized to achieve extended battery life. FRAM is a new non-volatile memory that combines the speed, flexibility and endurance of SRAM with the stability and reliability of flash, all at lower total power consumption. The device configurations with five 16-bit timers, 12-bit A/D converter, liquid crystal display driver, a 16-channel comparator with voltage reference generation, a hardware multiplier and 83 general-purpose I/O pins. This device operates at a maximum frequency of 16MHz.
- Ultra-low-power ferroelectric RAM (FRAM)
- 32-bit Hardware multiplier (MPY)
- 3-channel internal DMA
- Real-time clock (RTC) with calendar and alarm functions
- Five 16-bit timers with up to 3 Capture/Compare registers
- 16-bit and 32-bit Cyclic redundancy checker (CRC16, CRC32)
- Extended scan interface (ESI) for background water, heat and gas volume measurement
- 12-bit ADC with internal reference and sample-and-hold and up to 16 external input channels
- Integrated LCD driver with contrast control for up to 320 segments
- Multifunction Input/output ports
- 256-bit AES Security encryption and decryption coprocessor
- True random number seed for random number generation algorithm
- UART with automatic baud-rate detection
- IrDA Encoder and decoder
- SPI at rates up to 10Mbps
- I2C with multiple-slave addressing
- Hardware UART and I2C bootstrap loader (BSL)
- Fixed-frequency DCO with six selectable factory-trimmed frequencies
- Low-power low-frequency internal clock source (VLO)
- 32kHz Crystals (LFXT)
- These products use FRAM non-volatile memory technology. FRAM retention is sensitive to extreme temperatures, such as those experienced during reflow or hand soldering.
MSP430FR6989IPZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP-100 |
| Frequency | 16 MHz |
| Number of Positions | 100 Position |
| Clock Speed | 16.0 MHz |
| RAM Memory Size | 2 KB |
| Number of Bits | 16 Bit |
| FLASH Memory Size | 0 B |
| Number of UARTs | 2 UART |
| Number of ADCs | 1 ADC |
| FRAM Memory Size | 131072 B |
| Number of Inputs and Outputs | 83 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
