Description

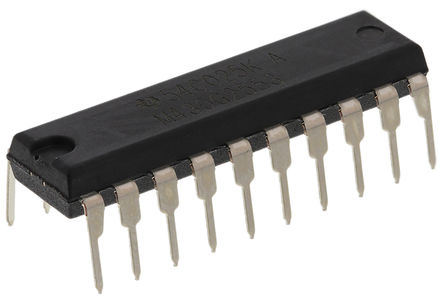

The Texas Instruments MSP430G2553IN20 ultra low power microcontroller consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes, is optimised to achieve extended battery life in portable measurement applications. The device features a powerful 16 bit RISC CPU, 16 bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake up from low power modes to active mode in less than 1µs.
Universal Serial Communication Interface
Ultra low power consumption
Five power saving modes
Ultra fast wake up from standby mode less Than 1µs
On chip comparator for analogue signal compare function or slope analogue to digital conversion
16 bit RISC architecture, 62.5ns instruction cycle time
Basic clock module configurations
10bit 200ksps analogue to digital converter with internal reference, Sample and hold and auto scan
Brownout detector
Two 16 bit timer with three capture/compare registers
On chip emulation logic with Spy-Bi-Wire capture/compare registers interface
Up to 24 capacitive touch enabled I/O pins

Show

MSP430G2553IN20 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Frequency	16 MHz
Supply Voltage (DC)	1.80V (min)
Operating Voltage	1.8VDC ~ 3.6VDC
Number of Positions	20 Position
Clock Speed	16 MHz
RAM Memory Size	512 x 8
Number of Bits	16 Bit
FLASH Memory Size	16 KB
Number of UARTs	1 UART
Number of ADCs	1 ADC
FRAM Memory Size	0 B
Number of Inputs and Outputs	16 IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8.3.6 VDC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	24.33 mm
Size-Width	6.35 mm
Size-Height	5.08 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/06/27
