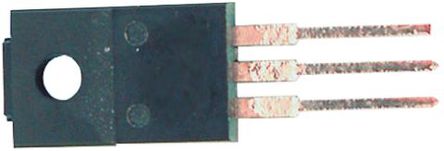

Image is for your reference only,please check specifications for details

MSRF860G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC37214136
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MSRF860G Standard Power Diode, 600V, 8A, Single, 1.7V, 120ns, 100A
Stock Locations:
Availability:
9,983 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.06

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

SWITCHMODE™ Soft Recovery Power Rectifiers
Plastic TO−220 Package
These state−of−the−art devices are designed for use as free wheeling diodes in variable speed motor control applications and switching power supplies.
Features
• Soft Recovery with Guaranteed Low Reverse Recovery Charge
(QRR) and Peak Reverse Recovery Current (IRRM)
• 150°C Operating Junction Temperature
• Epoxy meets UL 94 V−0 @ 0.125 in
• Low Forward Voltage
• Low Leakage Current
• Pb−Free Package is Available

Show

MSRF860G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Number of Positions	2 Position
Forward Voltage	1.7V @8A
Thermal Resistance	4.75℃/W (RθJC)
Reverse recovery time	120 ns
Forward Current	8 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	8 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	10.63 mm
Size-Width	4.9 mm
Size-Height	16.07 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
