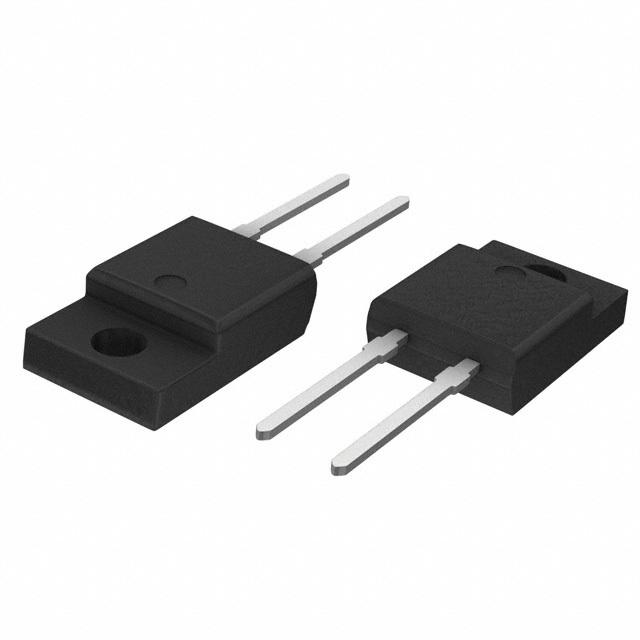

Image is for your reference only,please check specifications for details

MURF1560G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC10138017
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MURF1560G Fast / Ultrafast Power Diode, 600V, 15A, Single, 1.5V, 60ns, 150A New
Stock Locations:
Availability:
56 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.98

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MURF1560G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Forward Voltage	1.5V @15A
Thermal Resistance	4.25℃/W (RθJC)
Reverse recovery time	60 ns
Forward Current	15 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	15 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
