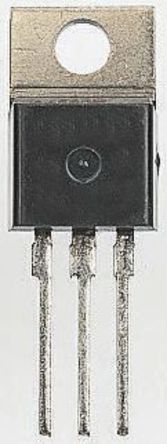

Image is for your reference only,please check specifications for details

MURF1620CTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC14675673
Category:
Diode Array, TVS Diode Array
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MURF1620CTG Fast / Ultrafast Diode, 200V, 8A, Dual Common Cathode, 975mV, 25ns, 100A
Stock Locations:
Availability:
14 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Diode Array 1 Pair Common Cathode Standard 200V 8A Through Hole TO-220-3 Full Pack

Show

MURF1620CTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	200 V
Current Rating	16.0 A
Forward Voltage	0.975 V
Thermal Resistance	4.2 ℃/W
Reverse recovery time	35 ns
Forward Current	8 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	975 mV
Forward Current (Max)	16 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	10.63 mm
Size-Width	4.9 mm
Size-Height	9.24 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
