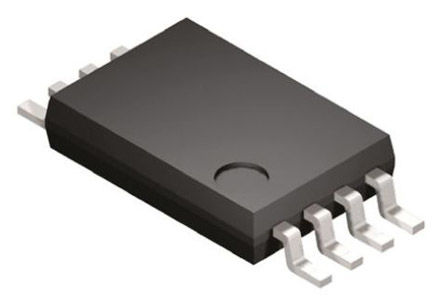

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The N01S830HAT22I is a 1Mb ultra-low power serial SRAM in 8 pin TSSOP package. The serial SRAM family includes several integrated memory devices including this 1Mb serially accessed static random access memory, internally organized as 128K words by 8bits. The devices are designed and fabricated using advanced CMOS technology to provide both high-speed performance and low power. The devices operate with a single chip select (CS) input and use a simple Serial Peripheral Interface (SPI) protocol. In SPI mode, a single data-in (SI) and data-out (SO) line is used along with the clock (SCK) to access data within the device. In DUAL mode, two multiplexed data-in/data-out (SIO0-SIO1) lines are used and in QUAD mode, four multiplexed data-in/data-out (SIO0-SIO3) lines are used with the clock to access the memory. The N01S830HA device has a HOLD version that allows communication to the device to be paused.
Power supply range from 2.5V to 5.5V
Very low typical standby current is less than 4µA at +85°C
Very low operating current is less than 10mA
Single bit SPI access, dual bit and quad bit SPI like access serial interface
Flexible operating modes such as word mode, page mode, burst mode (full array)
High frequency read and write operation clock frequency up to 20MHz
Built-in write protection
High reliability unlimited write cycles
Operating temperature range from -40°C to +85°C

Show

N01S830HAT22I Specifications
