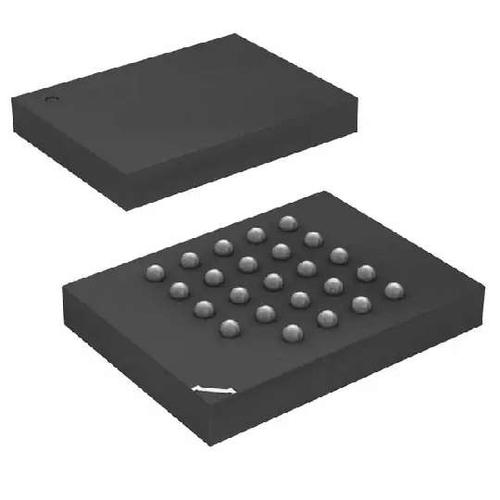

Image is for your reference only,please check specifications for details
- N25Q512A13G1240E - Micron
-
Manufacturer:Micron
-
ManyChip's Part#:MC108459863
-
Category:Flash Memory, Flash
-
Package:TBGA-24
-
Datasheet:Datasheet 3D Model
-
Description:NOR Flash Serial-SPI 3V 512Mbit 512M/256M/128M x 1Bit/2Bit/4Bit 24Pin TBGA Tray
-
Stock Locations:
-
Availability:658 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.58
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Features
- • Stacked device (two 256Mb die)
- • SPI-compatible serial bus interface
- • Double transfer rate (DTR) mode
- • 2.7–3.6V single supply voltage
- • 108 MHz (MAX) clock frequency supported for all protocols in single transfer rate (STR) mode
- • 54 MHz (MAX) clock frequency supported for all protocols in DTR mode
- • Dual/quad I/O instruction provides increased throughput up to 54 MB/s
- • Supported protocols
- – Extended SPI, dual I/O, and quad I/O
- – DTR mode supported on all
- • Execute-in-place (XIP) mode for all three protocols
- – Configurable via volatile or nonvolatile registers
- – Enables memory to work in XIP mode directly after power-on
- • PROGRAM/ERASE SUSPEND operations
- • Available protocols
- – Available READ operations
- – Quad or dual output fast read
- – Quad or dual I/O fast read
- • Flexible to fit application
- – Configurable number of dummy cycles
- – Output buffer configurable
- • Software reset
- • Additional reset pin for selected part numbers 1
- • 3-byte and 4-byte addressability mode supported
- • 64-byte, user-lockable, one-time programmable (OTP) dedicated area
- • Erase capability
- – Subsector erase 4KB uniform granularity blocks
- – Sector erase 64KB uniform granularity blocks
- – Single die erase
- • Write protection
- – Software write protection applicable to every 64KB sector via volatile lock bit
- – Hardware write protection: protected area size defined by five nonvolatile bits (BP0, BP1, BP2,BP3, and TB)
- – Additional smart protections, available upon request
- • Electronic signature
- – JEDEC-standard 2-byte signature (BA20h)
- – Unique ID code (UID): 17 read-only bytes, including: Two additional extended device ID bytes to identify device factory options; and customized factory data (14 bytes)
- • Minimum 100,000 ERASE cycles per sector
- • More than 20 years data retention
- • Packages – JEDEC-standard, all RoHS-compliant
- – V-PDFN-8/8mm x 6mm (also known as SON, DFPN, MLP, MLF)
- – SOP2-16/300mils (also known as SO16W, SO16-Wide, SOIC-16)
- – T-PBGA-24b05/6mm x 8mm (also known as TBGA24)
N25Q512A13G1240E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TBGA-24 |
| Supply Current | 20 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 3.6V |
| Show | |
| Size-Height | 0.79 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
