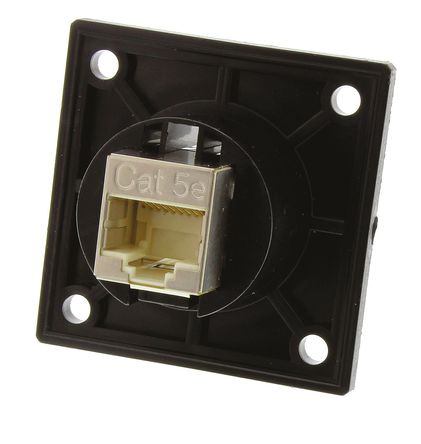

Image is for your reference only,please check specifications for details

PX0870 - Bulgin Components
Manufacturer:
Bulgin Components
ManyChip's Part#:
MC17444625
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
Modular Connectors / Ethernet Connectors CAT 5e COUPLER FLANGE MOUNTING
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Cat 5e shielded coupler
Standard RJ45 patchcord can be plugged into rear
Flange fixing
Complete with panel sealing gasket
Mates with Farnell p/ns 121-1516, 121-1517, 121-1518, 121-1519, 121-1520, 121-1521, 966-7733

Show

PX0870 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Number of Contacts	8 Contact
Gender	Female
Contact Plating	Gold
Voltage Rating (AC)	30.0 V
Current Rating	1.5 A
Number of Rows	1 Row
Flammability Rating	UL 94 V-0
Number of Positions	8 Position
Contact Resistance	10.0 mΩ
Number of Mating Cycles	1000 Cycle
Current Rating (Max)	1.5 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	42 V
Maximum Contact Resistance (Max)	10 mΩ
	Show
Size-Length	44.5 mm
Size-Width	33 mm
Size-Height	44.5 mm
Color	Black
Contact Material	Phosphor Bronze
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694050
ECCN Code	EAR99
