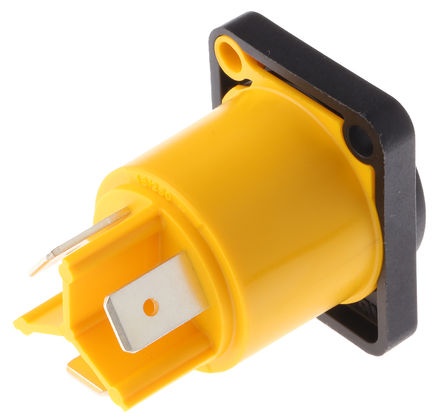

Image is for your reference only,please check specifications for details

NAC3MPX - Neutrik
Manufacturer:
Neutrik
ManyChip's Part#:
MC11515196
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
Male Black, Yellow 2P+E Mains 20A Plug Chassis Mount, 250V ac, Polyamide
Stock Locations:
Availability:
1,217 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NAC3MPX from Neutrik is a powerCON TRUE1 appliance inlet connector with 1/4"" flat tab terminals. The powerCON TRUE1 is a locking 16A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed for a safe power connection.
Easy and reliable twist lock system
Extremely robust and reliable
ENEC certified according to IEC 60320
UL recognized components
IP65 ingress protection in mated condition and unmated in combination with SCNAC-MPX
Flammability rating meets UL 94 V-0
Rated voltage of 250VAC and rated current per contact 16Arms
Wire size of 12AWG(2.5 mm² )
Temperature range from -30°C to +80°C
Greater than 5000 mating cycles

Show

NAC3MPX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder, Panel
Number of Pins	3 Pin
Number of Contacts	3 Contact
Gender	Male
Voltage Rating (AC)	250 V
Current Rating	16 A
Orientation	Straight
Voltage Rating	250 VAC
	Show
Size-Height	31 mm
Color	Black, Yellow
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536694030
ECCN Code	EAR99
