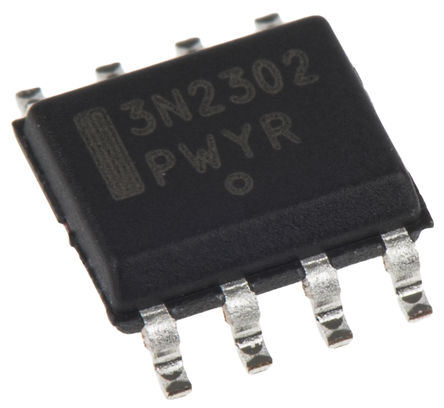

Image is for your reference only,please check specifications for details

NB3N2302DG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC68742070
Category:
Clock Chip, Timing IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Zero Delay Buffer, 5MHz - 133MHz Frequency Multiplier, 3.3V / 5V, SOIC-8 Narrow Body, 98-TUBE
Stock Locations:
Availability:
1,362 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.62

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NB3N2302 is a versatile Zero Delay Buffer that operates from 5MHz to 133MHz with a 3.3V or 5V power supply. It accepts a reference input and drives a div 1 and a div 2 clock output. The NB3N2302 has an on-chip PLL which locks to the input reference clock presented on the REF_IN pin. The PLL feedback is required to be driven to the FBIN pin and can be obtained by connecting either the OUT1 or OUT2 pin to the FBIN pin. The Function Select inputs control the various multiplier output frequency combinations.
Features
---
|
Output Frequency Range: 5 MHz to 133 MHz
Two LVTTL/LVCMOS Outputs
65 ps Typical Jitter OUT2
115 ps Typical Jitter OUT1
Operating Voltage Range: VDD = 3.3V +/-5% or 5V +/-10%
40C to +85C Ambient Operating Temperature Range

Show

NB3N2302DG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	133 MHz
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Number of Circuits	1 Circuit
Number of Positions	8 Position
Number of Inputs	1 Input
Maximum Duty Cycle	60 %
Fall Time (Max)	3.5 ns
Fall Time (Max)	3.5 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.135V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
