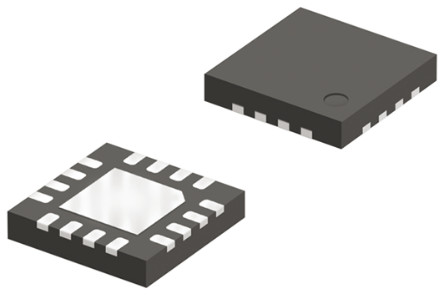

NB4L52MNG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3528726
Category:
Flip Flop IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
NB Series 3.3V 4GHz SMT Differential Data/Clock D Flip-Flop with Reset QFN-16
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NB4L52MNG is a differential Data and Clock D-type Flip-flop with a differential asynchronous reset. The differential inputs incorporate internal 50 termination resistors and will accept PECL, LVPECL, LVCMOS, LVTTL, CML or LVDS logic levels. When Clock transitions from low to high, Data will be transferred to the differential LVPECL outputs. The differential Clock inputs allow the NB4L52 to also be used as a negative edge triggered device.
145ps Typical rise and fall times
50R Internal input termination resistors
Functionally compatible with existing 2.5 V/3.3 V/5.0V LVEL, LVEP, EP and SG devices

Show

NB4L52MNG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Frequency	4 GHz
Supply Voltage (DC)	2.38V (min)
Halogen Free Status	Halogen Free
Output Current	25 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	1 Bit
Polarity	Non-Inverting, Inverting
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.375V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.375 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
