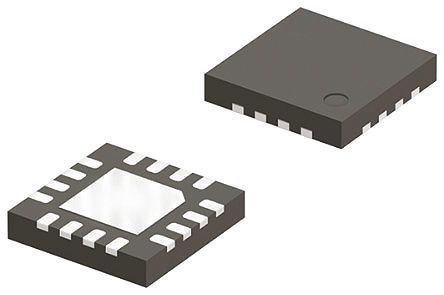

Image is for your reference only,please check specifications for details

NB7L86MMNG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC12677241
Category:
Logic Control, Logic Gate IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
2.5V/3.3V 12GB/s Differential Clock/Data SmartGate with CML Output and Internal Termination
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 32.23

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

NB7L86MMNG logic gates from ON Semiconductor are designed specifically to be interconnected and create a variety of different logic-based circuits. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product comes in rail packaging to keep individual parts separated and protected. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2.375 V, while its maximum is 3.465 V.

Show

NB7L86MMNG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Supply Voltage (DC)	2.38V (min)
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Output Current	25 mA
Number of Circuits	2 Circuit
Number of Positions	16 Position
Number of Gates	1 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.4V ~ 3.5V
Supply Voltage (Max)	3.465 V
Supply Voltage (Min)	2.375 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	3A001.a.11.b
HK STC License	NLR
