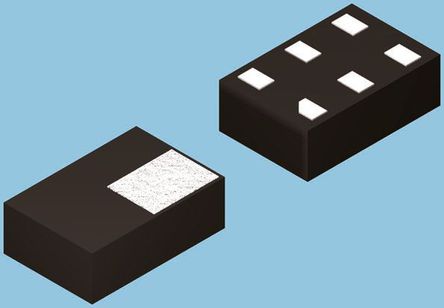

- NC7SB3157L6X - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC69636444
-
Category:Interface IC, Interface Controller
-
Package:UFDFN-6
-
Datasheet:Datasheet 3D Model
-
Description:Low Voltage SPDT Analog Switch or 2:1 Multiplexer/Demultiplexer Bus Switch, 6LD, MICROPAK, JEDEC MO-252, 1MM WIDE - MLP (PREMOLDED), 5000/TAPE REEL
-
Stock Locations:
-
Availability:9,900 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.07
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Low Voltage SPDT Analog Switch or 2:1 Multiplexer/Demultiplexer Bus Switch General Description The NC7SB3157 or FSA3157 is a high performance, single-pole/double-throw (SPDT) Analog Switch or 2:1 Multiplexer/Demultiplexer Bus Switch. The device is fabricated with advanced sub-micron CMOS technology o achieve high speed enable and disable times and low On Resistance. The break before make select circuitryprevents disruption of signals on the B Port due to both switches temporarily being enabled during select pin switching. The device is specified to operate over the 1.65 to 5.5V VCC operating range. The control input tolerates voltages up to 5.5V independent of the VCC operating range. Features Useful in both analog and digital applications Space saving SC70 6-lead surface mount package Ultra small MicroPak™ Pb-Free leadless package Low On Resistance; < 10Ω on typ @ 3.3V VCC Broad VCC operating range; 1.65V to 5.5V Rail-to-Rail signal handling Power down high impedance control input Overvoltage tolerance of control input to 7.0V Break before make enable circuitry 250 MHz, 3dB bandwidth
NC7SB3157L6X Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | UFDFN-6 |
| Supply Voltage (DC) | 5.50 V |
| Number of Outputs | 1 Output |
| Contacts Type | DPST |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 180 mW |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 250 MHz |
| Power Dissipation (Max) | 180 mW |
| Show | |
| Size-Length | 1.45 mm |
| Size-Width | 1 mm |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
