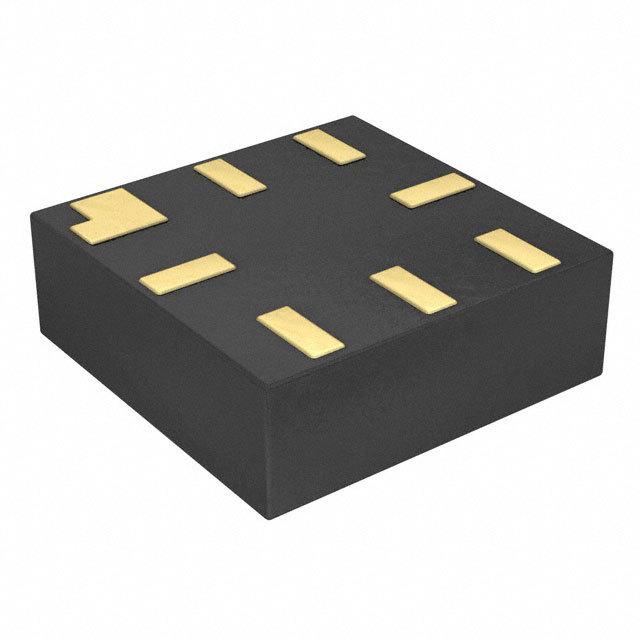

Image is for your reference only,please check specifications for details
- NC7WB66L8X - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC89913437
-
Category:Interface IC, Interface Controller
-
Package:MicroPak-8
-
Datasheet:Datasheet 3D Model
-
Description:Low Voltage Dual SPST Normally Open Analog Switch or 2Bit Bus Switch, 8LD,MICROPAK, JEDEC MO-255, VARIATION UAAD, 1.6MM SQUARE, 5000/TAPE REEL
-
Stock Locations:
-
Availability:4,109 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.27
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
NC7WB66L8X Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MicroPak-8 |
| Number of Outputs | 2 Output |
| Contacts Type | SPST |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 0.25 W |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 300 MHz |
| Power Dissipation (Max) | 250 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
