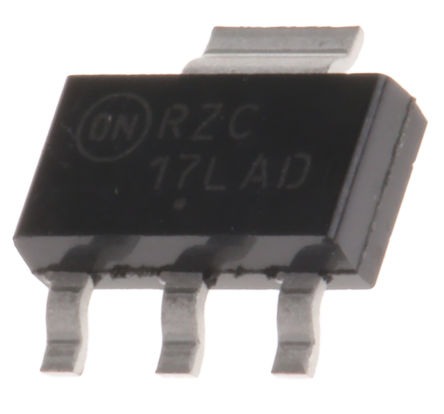

NCP1117LPSTADT3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC5861559
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP1117LPSTADT3G LDO Voltage Regulator, Adjustable, 18V in, 1.3V drop, 1A out, SOT-223-4
Stock Locations:
Availability:
268 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1117LPSTADT3G is a low power low-dropout Voltage Regulator with reduced quiescent current. It is intended primarily for high volume consumer applications over the 0 to 125° temperature range. Capable of providing an output current in excess of 1A with a dropout voltage of 1.3V at 1A full current load, it consists of an adjustable voltage version. Internal protection features consist of output current limiting and built-in thermal shutdown.
No minimum load requirement for fixed voltage output device
Good noise rejection
Operation up to 18V input
Quiescent current over 10 times lower than traditional 1117

Show

NCP1117LPSTADT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	1 A
Supply Current	50 µA
Number of Positions	4 Position
Polarity	P-Channel
Quiescent Current	50 µA
voltage rating	1.3V @1A
Input Voltage (Max)	18 V
Output Voltage (Max)	16.6 V
Output Voltage (Min)	1.25 V
Output Current (Max)	1.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	≤18 V
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.69 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
