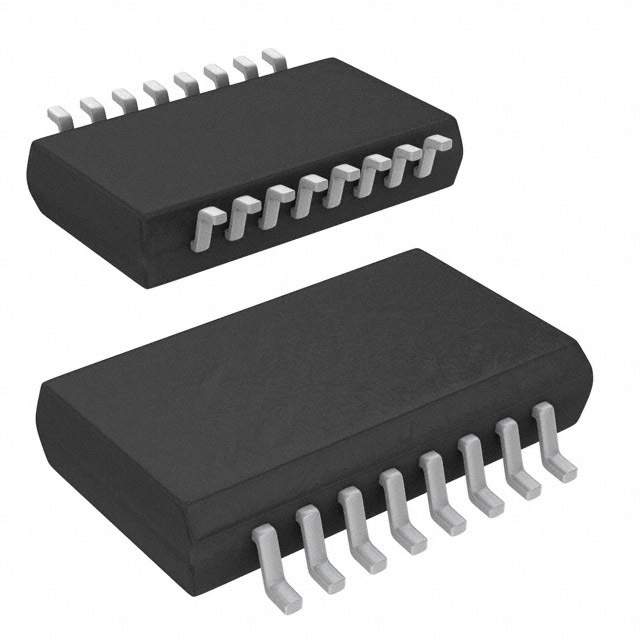

Image is for your reference only,please check specifications for details
- ADM691AARW - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC42751310
-
Category:Power Monitor
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:µP Supervisor with Battery Backup, Watchdog, Power Fail Indicator & Reset Generator Processor Supervisor 4.65V 4.75V to 5.5V Automotive 16Pin SOIC W Tube
-
Stock Locations:
-
Availability:993 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.45
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- By using this ADM691AARW microprocessor supervisory circuit from Analog Devices you won"t have to worry if something happens to your main processor. This device has a maximum power dissipation of 762 mW. Its maximum power dissipation is 762 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 0 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 4.65 V, with a minimum of 4.5 V and a maximum of 4.75 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
ADM691AARW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 5.50V (max) |
| Supply Current | 0.1 mA |
| Power Dissipation | 762 mW |
| Threshold Voltage | 4.65 V |
| Reset Threshold Voltage (Min) | 4.5 V |
| Reset Threshold Voltage (Max) | 4.75 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 762 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| HK STC License | NLR |
