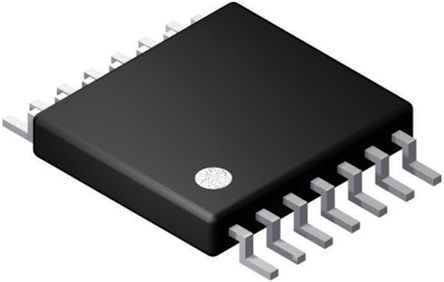

DRV104PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC33562967
Category:
FET Driver
Package:
HTSSOP-14
Datasheet:
Datasheet 3D Model
Description:
PWM High-Side Driver (1.5A) for Solenoids, Coils, Valves, Heaters, and Lamps 14-HTSSOP -40℃ to 85℃
Stock Locations:
Availability:
322 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.73

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Use the DRV104PWP power driver from Texas Instruments to turn on and off your high-power transistors! Its typical operating supply voltage is 24 V. This device has a maximum propagation delay time of 2200(typ) ns. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This gate driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device has a typical operating supply voltage of 24 V. Its minimum operating supply voltage of 8 V, while its maximum is 32 V.

Show

DRV104PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Output Voltage	40 V
Output Current	2 A
Output Current (Max)	1.2 A
Output Current (Min)	1.2 A
Fall Time (Max)	2000 ns
Fall Time (Max)	2000 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	8V ~ 32V
Supply Voltage (Max)	32 V
Supply Voltage (Min)	8 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
