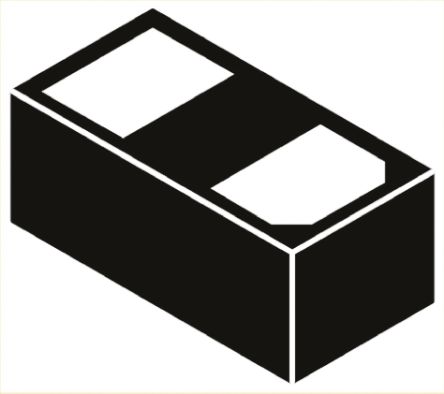

ESD7481MUT5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC41096450
Category:
TVS Diode
Package:
DFN-2
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR ESD7481MUT5G ESD Protection Device, 12V, X3DFN, 2Pins, 3.3V, 0.25W(1/4W)
Stock Locations:
Availability:
1,902 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ESD7481 is designed to protect voltage sensitive components that require ultra-low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, the part is well suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications.
Features
---
|
UltraLow Capacitance 0.25 pF
Insertion Loss: 0.030 dBm
Low Dynamic Resistance < 1Ω
IEC6100042 Level 4 ESD Protection
These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant

Show

ESD7481MUT5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DFN-2
Operating Voltage	3.3 V
Capacitance	0.4 pF
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Power Dissipation	250 mW
Clamping Voltage	12 V
Test Current	1 mA
Peak Pulse Power	0.25 W
Min Breakdown Voltage	6 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 125℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	0.62 mm
Size-Width	0.32 mm
Size-Height	0.28 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
