MBR1H100SFT3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1139474
Category:
Schottky Diode
Package:
SOD-123-2
Datasheet:
Datasheet 3D Model
Description:

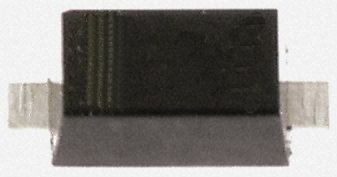

ON Semi MBR1H100SFT3G, SMT Schottky Switching Diode, 100V 1A, 2Pin SOD-123FL
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MBR1H100SFT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123-2
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Forward Voltage	760mV @1A
Thermal Resistance	23℃/W (RθJL)
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	840 V
Forward Current (Max)	1 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.8 mm
Size-Height	0.9 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
